ISOLATORS

Home  »  Isolator

Isolator is a manually-operated device used to isolate / break the circuit with the power supply. They serve as perfect companion to ensure the complete de-energisation of the electrical circuits in residential buildings and business premises.

They are typically used to interrupt the power supply for repair and maintenance work. Visually they look very similar to a MCB, but technically they are different. MCB is an automatically-operated circuit breaker for overload and short circuit protection, while Isolator is a manually-operated device for simply breaking off the circuit.

Pressfit’s Isolators come with current ratings: 40A, 63A, 100A, and 125A and rated Impulse Voltage (Uimp) of 6 kV. They are manufactured adhering to the IS/IEC 60947-3 norms.

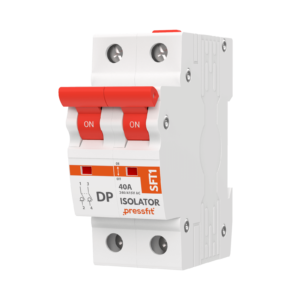

DP ISOLATOR 40A

DP Isolator

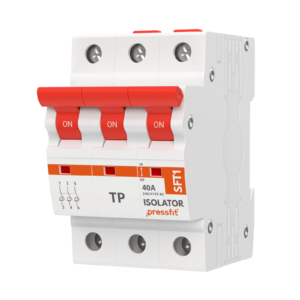

TP ISOLATOR 40A

TP ISOLATOR​

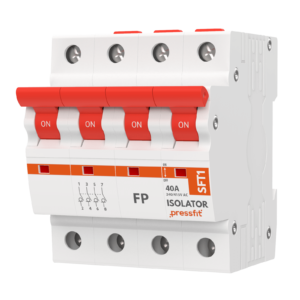

FP ISOLATOR 40A

FP ISOLATOR

EXCEPTIONAL FEATURES

IP20 Class Protection

Pressfit’s Isolators are equipped with IP20 protection, which eliminates the risk of accidental contact with the live parts. It denotes the penetration protection level against solid objects of up to 12 mm, e.g. a person’s fingers. All live parts are shrouded to avoid direct contact with the internal parts, ensuring the safety of the installers.

High-Speed Breaking ​​Mechanism

SFT1-MCB has a high-speed breaking mechanism which employs electrodynamic forces generated by the strong current due to a short circuit. The contacts get separated much faster before they can peak, which suppresses the high current.

Better Air Circulation

When two or more poles are placed side by side, the breathing channels are contoured to allow air to circulate around each pole, resulting in cooler operations.

Energy Efficient

SFT1 Isolators comply with IS/IEC 60947-3 standards and offer lower power dissipation compared to IS / IEC benchmarks. Less power outage makes it energy efficient and saves money by lowering your electricity bills.

  APPLICATION OF ISOLATOR
